🔥AGILENT E8362B VNA Vector Network Analyzer PNA 10 Mhz-20 Ghz ~ Max Opts! Cal’d

🔥AGILENT E8362B VNA Vector Network Analyzer PNA 10 Mhz-20 Ghz ~ Max Opts! Cal’d

$9,400.00 USD
$9,400.00 USD
Sale Sold out
  • E8362B as described on Ebay per our discussion.
  • TERMS: $9400.00 50% by Credit Card now and $9400.00 50% by Credit Card net 10 Days.
  • Price includes shipping and handling.
  • Warranty is 6 months.
  • 3% Credit card Fee is included per our discussion.
  • We will update the Calibration Certificate Per your email.

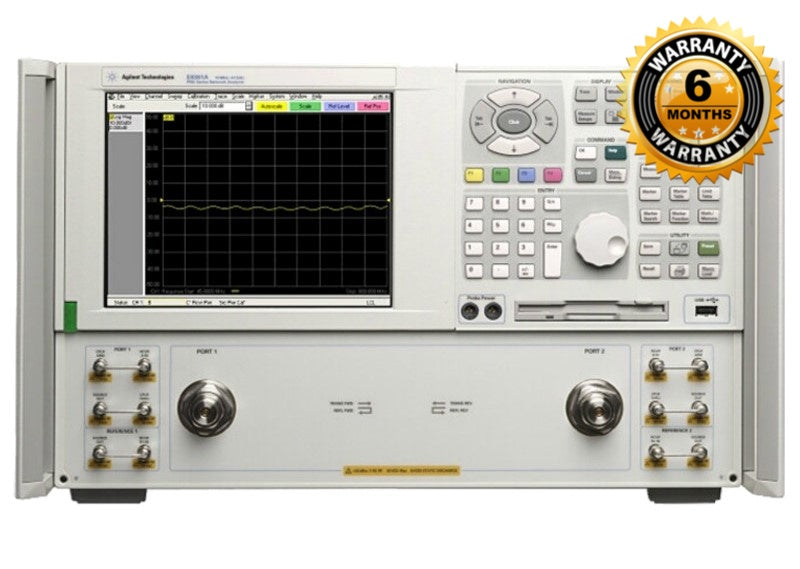

Agilent Keysight E8362B PNA 20GHz Microwave Network Analyzer


Frequency Range: 10 MHz to 20 GHz

Includes Accessories As Listed Above!



Working Condition: Excellent

Condition: Refurbished
Calibrated: Yes. 3rd Party NIST Calibration by BRL TEST.
Warranty: 6 Month WARRANTY!

 Includes : options 010, 014, 016, 080 , 081, 083, 1A7 , UNL


010:  Time Domain Capability

014:  Configurable Test set

016:  Adds 2 Receiver Attenuators

080: Frequency Offset

081:  Reference Channel Switch

083: Frequency Converter Application

1A7: Iso 17025 Cal

UNL:  Extended power range and bias tees(adds two attenuators (source)


DESCRIPTION:

Agilent E8362B PNA 20GHz Microwave Network Analyzer

The Keysight Agilent HP E8362B PNA 20GHz Vector Network Analyzer provides the perfect combination of speed and precision for the demanding needs of high frequency, high-performance component test requirements.

The E8362B provides the right combination of fast sweep speeds, wide dynamic range, low trace noise and flexible connectivity. In addition, the E8362B now provides the capability to more accurately measure mixers and amplifiers with its new frequency-offset capability.

  • Frequency Range of 10MHz to 20GHz
  • 125dB of dynamic range at 20GHz
  • <0.006dB of trace noise at 1kHz IFBW
  • <26µsec/point measurement speed
  • 32 measurement channels with up to 16,001 points per channel
  • Supports TRM/LRM calibration for the most accurate on-wafer, in-fixture, and waveguide measurements


Description Supplemental information
System IF bandwidth range 1 Hz to 40 kHz, nominal
RF connectors 3.5 mm (male), 50 Ω, (nominal), center pin recession flush to .002 in. (characteristic)
Display 8.4 in diagonal color active matrix LCD; 640 (horizontal) x 480 (vertical) resolution;
59.83 Hz vertical refresh rate; 31.41 Hz horizontal refresh rate
Display range
Magnitude
Phase
Polar
±200 dB (at 20 dB/div), max
±500°, max
10 pico units, min; 1000 units, max
Display resolution
Magnitude
Phase
0.001 dB/div, min
0.01°/div, min
Marker resolution
Magnitude
Phase
Polar
0.001 dB, min
0.01°, min
0.01 mUnit, min; 0.01°, min
CPU Intel® 1.1 GHz Pentium® M with 1 GByte RAM
Line power (single phase)
Frequency
Max
50/60/400 Hz for 100 to 120 V, 50/60 Hz for 220 to 240 V (Power supply is auto switching.)
350 Watts
General environmental
EMC




Safety
Complies with European EMC directive 89/336/EEC, amended by 93/68/EEC
• IEC/EN 61326
• CISPR Pub 11 Group 1, class A
• AS/NZS CISPR II:2002
• ICES/NMB-001
Complies with European Low Voltage Directive 73/23/EEC, amended by 93/68/EEC
• IEC/EN 61010-1:2001
• Canada: CSA C22.2 No. 61010-1:2001
• USA: UL 61010-1
Operating environment
Temperature


Error-corrected temperature range

Relative humidity
Altitude
0 to +40 °C; Instrument powers up, phase locks, and displays no error messages
within this temperature range. (Except for ‘source unleveled’ error message that
may occur at temperature outside the specified performance temperature range of 25 °C, ± 5 °C.)
System specifications valid from 23 °C, ± 3 °C, with less than 1 °C deviation from the
calibration temperature
Type-tested, 0 to 95% at 40 °C, non condensing
0 to 4600 m (15,000 ft)
Non-operating storage environment
Temperature
-40 to +70 °C
Weight
Net
Shipping
29 kg (64 lb), nom
36 kg (80 lb), nom.
